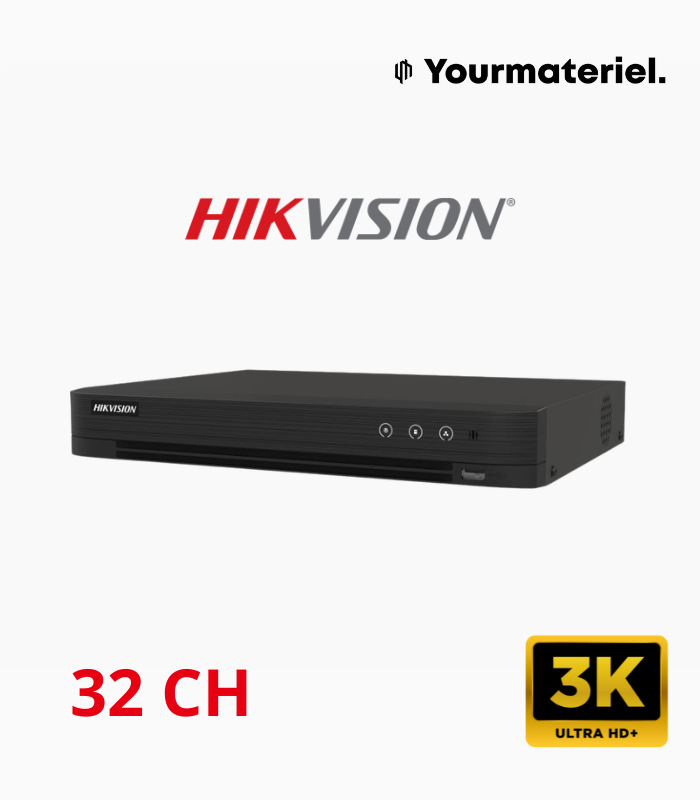

iDS-7232HQHI-M2/XT DVR Hikvision 32 Channels 3K / 5MP 2HDD

• 32 channels and 2 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 32-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/ 5MP Lite@12fps
• Up to 40 channels IP camera inputs, each channel up to 6MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

• Perimeter Protection
• Human/Vehicle AnalysisUp to 16-ch (advanced model)

• Facial Detection
• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

• Facial Recognition
• Face Picture Library

  Up to 16 face picture libraries ;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

• Video and Audio
• IP Video Input8-ch (up to 40-ch), each up to 6 MP resolution,
• Analog Video Input

  32-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output

  1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous playback16-ch
• HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-streamSupport main stream or sub stream
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Decoding
• Decoding Capabilityup to 24-ch 1080P@30fps

• Network
• Total Bandwidth256Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection128
• Network Interface

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 12 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 2 × USB 3.0

• Alarm In/OutN/A (optional to support)

• General
• Power Supply12 VDC, 5 A
• Consumption≤ 60 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
• ≤ 2.1 kg (4.6 lb)
